Pd(dppf)Cl₂ | CAS 72287-26-4 | ≥98%

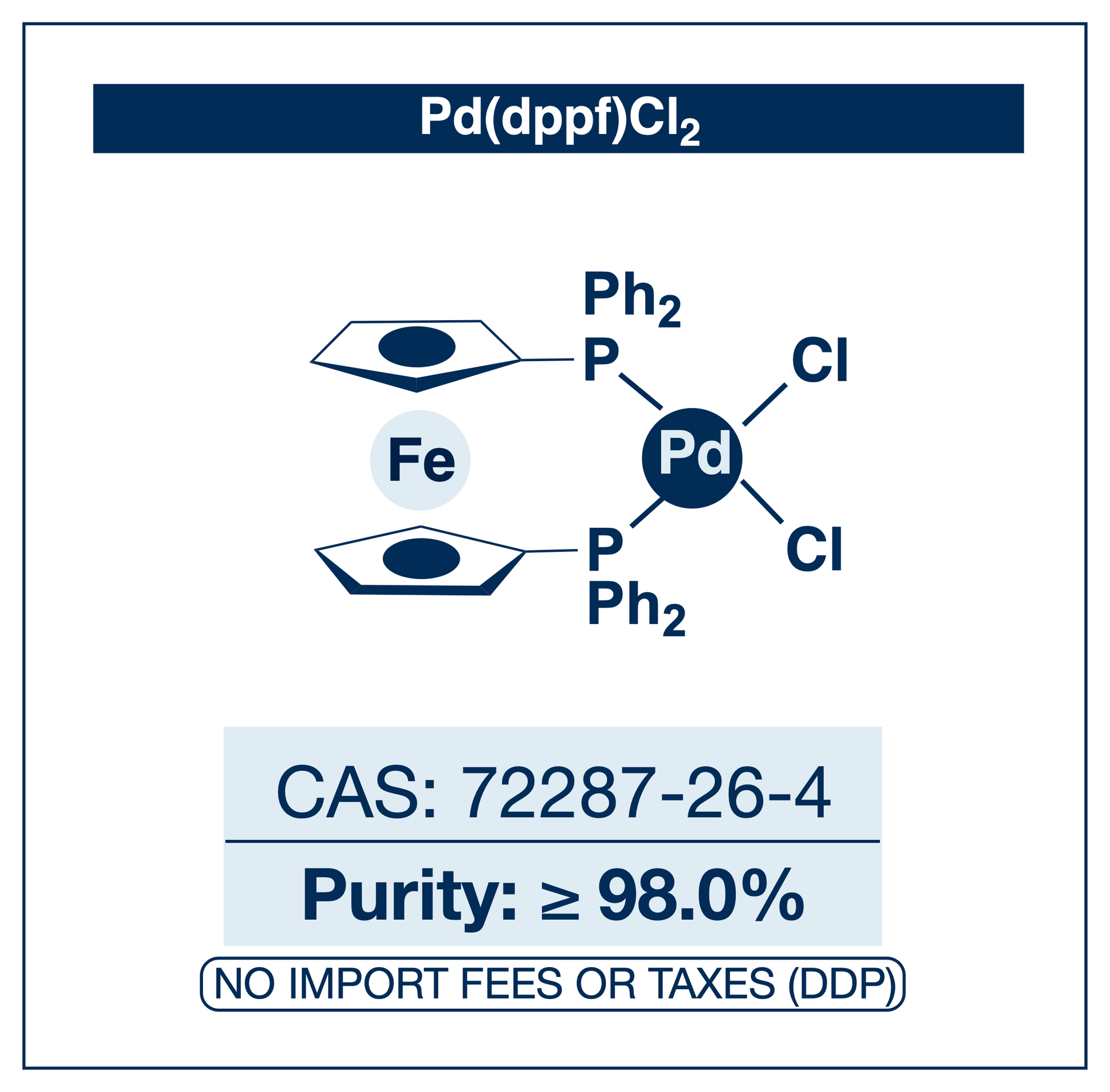

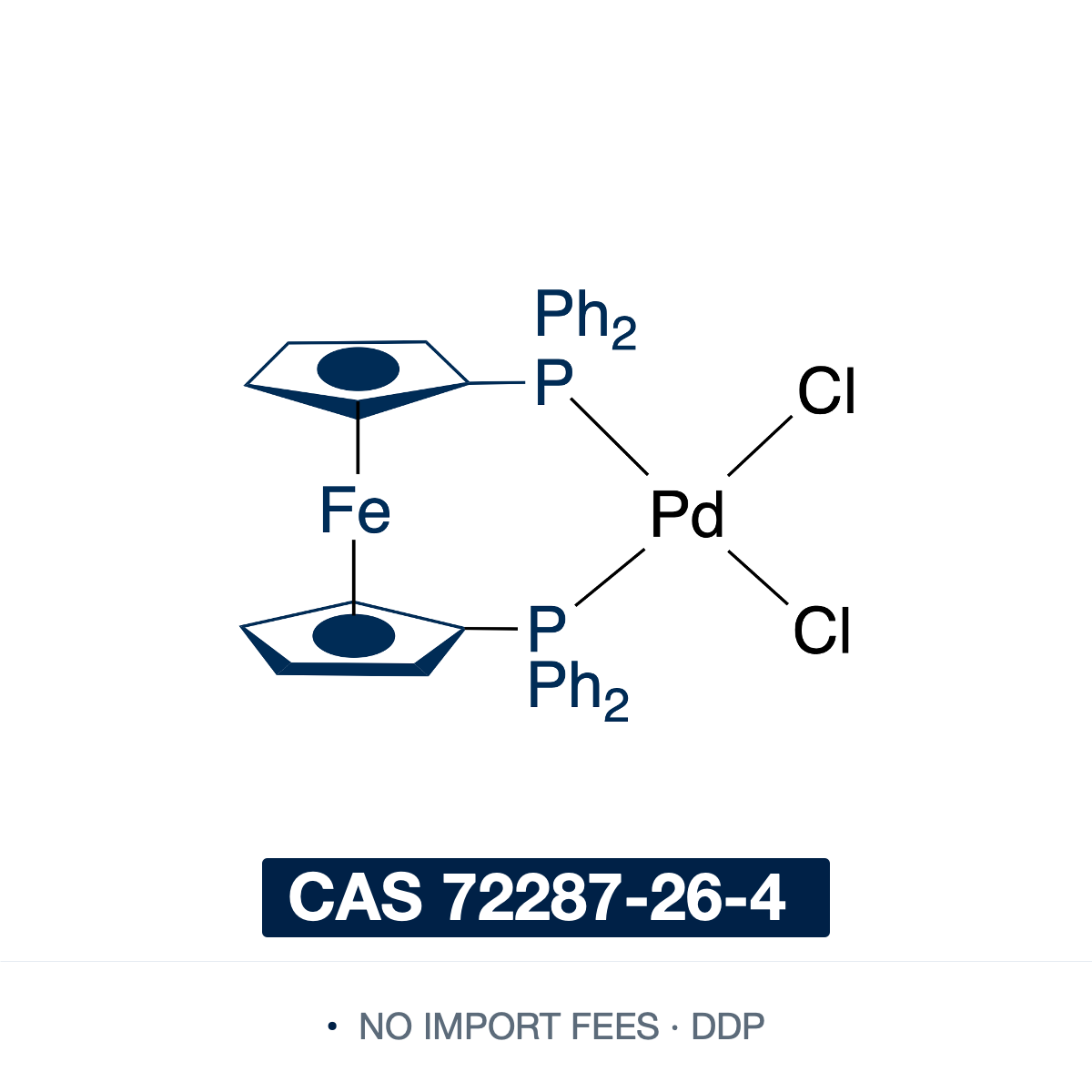

[1,1′-Bis(diphenylphosphino)ferrocene]dichloropalladium(II) (Pd(dppf)Cl₂) is an air-stable palladium(II) precatalyst in which the bidentate ligand dppf chelates palladium through its two phosphorus donors, completing a square-planar centre with two cis chloride ligands. The dppf backbone is built on a ferrocene unit whose two cyclopentadienyl rings each carry a diphenylphosphino group, giving the chelate a P–Pd–P bite angle near 99°, wider than the dppe and dppp homologues. Because the catalytically active species is palladium(0), the precatalyst must first be reduced in situ to a dppf-ligated palladium(0) species before oxidative addition; the reducing pathway depends on the substrate, base, solvent and organometallic partner present. It is conveniently prepared by treating dppf with a palladium dichloride bis(nitrile) complex.

Miyaura borylation

The signature application of Pd(dppf)Cl₂ is the Miyaura borylation. Ishiyama, Murata and Miyaura showed that the complex couples bis(pinacolato)diboron with aryl and vinyl halides, with potassium acetate as base, to give aryl- and vinylboronic esters directly from the halide. Potassium acetate is not a generic base. Bis(pinacolato)diboron is a poor Lewis acid, and ¹¹B NMR shows that acetate does not form an activated tetrahedral borate with it, in contrast to the boronate activation that operates in Suzuki coupling; instead the proposed cycle has acetate displace halide from the arylpalladium(II) intermediate, giving a Pd–O species more reactive toward transmetalation with the diboron than the Pd–halide it replaces. A mild base is important because a stronger one can activate the boronate product toward competing Suzuki coupling and erode yield. The conditions tolerate nitro, cyano, ester and carbonyl groups, and the air-stable pinacol boronate products are readily purified and used as coupling partners in the Suzuki–Miyaura reaction. The air stability of Pd(dppf)Cl₂, against many phosphine–palladium(0) catalysts, is part of what made this route broadly practical.

Cross-coupling and the bite-angle effect

Beyond borylation, Pd(dppf)Cl₂ and dppf-ligated palladium systems are documented across Suzuki–Miyaura, Kumada, Negishi, Sonogashira and Heck couplings, in Buchwald–Hartwig C–N amination, and in carbonylative chemistry such as alkoxy- and aminocarbonylation. Much of the complex's value traces to the bite angle. Widening the P–Pd–P angle destabilises the square-planar palladium(II) ground state and stabilises the lower-coordinate product of reductive elimination, lowering the barrier to that bond-forming step. The effect is measurable: in a direct comparison of P₂PdMeR complexes, the larger interchelate angle of dppf gave faster reductive elimination than the narrower dppp. Hayashi and Kumada exploited this in the original dppf work, where Pd(dppf)Cl₂ coupled secondary and primary alkyl Grignard and alkylzinc reagents with organic halides without isomerisation of the alkyl group or reduction of the halide through β-hydride elimination — because reductive elimination outcompeted the β-hydride pathway that defeats simpler phosphine catalysts.

Choosing among palladium sources

Pd(dppf)Cl₂ is one of several common entry points to palladium catalysis, and the practical differences are largely structural. Pd(PPh₃)₄ is a ready-made palladium(0) source but is air- and light-sensitive and carries four monodentate phosphines, whose dissociation equilibria and excess can slow the cycle; it is also weak toward the less reactive aryl chlorides. Pd₂(dba)₃ is a bench-stable palladium(0) reservoir to which a ligand of choice is added, but its dibenzylideneacetone is not an innocent spectator: it coordinates palladium(0) and modulates both the concentration of active species and the rate of oxidative addition, and it can decompose to palladium nanoparticles that aggregate as inactive palladium black, lowering the soluble active palladium. Pd(dppf)Cl₂, in contrast, is an air-stable solid that delivers a single, defined dppf chelate with a fixed bite angle, removing the phosphine-to-palladium ratio and any added-ligand step as variables. The best choice remains reaction- and substrate-dependent.

Coordination behaviour and precatalyst use

As a chelating diphosphine, dppf enforces a cis P,P coordination mode and gives more persistent ligand binding than monodentate phosphines, while still allowing the coordination changes required for cross-coupling turnover. The ferrocene backbone provides a defined yet flexible scaffold, and modification of the aryl substituents tunes the donor properties at phosphorus — together establishing Pd(dppf)Cl₂ as a widely used diphosphine palladium precatalyst in research and process chemistry.
